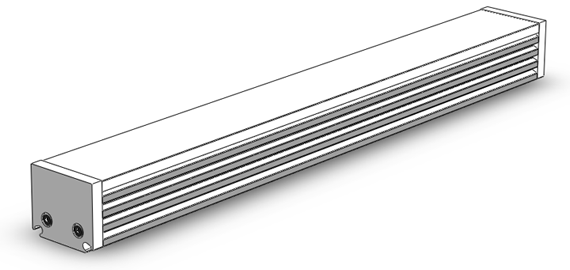

M109 D

Linear LED Light

The M109 D is a seamless and fully dimmable linear LED light for high light output applications such as task, primary, counter, art, and cove lighting. It can also be used for accent and fluorescent light replacement.

Using the EST light engine, the M109 features our color temperature changing feature to mimic the natural warm light that is generated by incandescent light bulbs when dimming. The M109 is extruded out of high grade aluminum which results in superior heat dissipation and an aesthetically pleasing appearance.

The length is custom ordered from a continuous 8.6" to 96" inches.


Slide 1 Slide 2 Slide 3 Slide 3 Slide 3 Slide 3 Slide 3 Slide 3 Slide 3
Example Frame


Made in America UL ListedCalifornia Title 24 Listed No UV radiation

1% Smooth Dimming, ELV or 0to10V1% Smooth Dimming, ELV or 0to10V


Specifications

  M109 D
Housing Clear anodized Aluminum
Style Straight or Tapered Profile
Dimensions 0.86" x 1.0" x [Custom]"   [H x W x L]
Length Up to  96”     (continuous)
Weight 7.5 oz/ft
Environment Indoor
Mounting Spring Clip
Light cover Frosted Polycarbonate Diffuser (Spotless)
Input voltage Low Voltage, 24 VCD
Power Supply EST PCU M109 100W Class II 24VDC
or
Compatible PS
Wattage 6 - 10 W/ft
Efficancy 54 - 64 Lm/W
Wire on Light EST 20/4 gauge, Male Connector
Wire from PCU to Light EST 20/4 gauge, Female Connector
LED EST light engine
Color temperature (CCT) 2700 to 3500 K      [Pre/Post Adjustable]
Color Rendering Index (CRI) 85> typical
Lumen output 525+ Lm/ft
Beam angle Wide / Medium / Narrow
Light beam Soft Edged
Dimming Seamless & Fully dimmable
Listings UL Listed, California Title 24 listed


Benefits
  • Plug & Play Installation
  • Wire length from PS up to 100 feet.
  • No variance in color temperature or light output.
  • California Title 24 Listed
  • Small foot-print
  • Usable for both mood and task lighting.
  • Made in USA
  • No assembly required.
  • Made to exact, custom length

Features
  • Seamless and fully dimmable.
  • Color temperature changing feature when dimming.
  • Continuous lamp length up to 10 feet.
  • Programmable color temperature (CCT) pre and post installation to match decor.
  • Wide, Medium, and Narrow beam angle option
